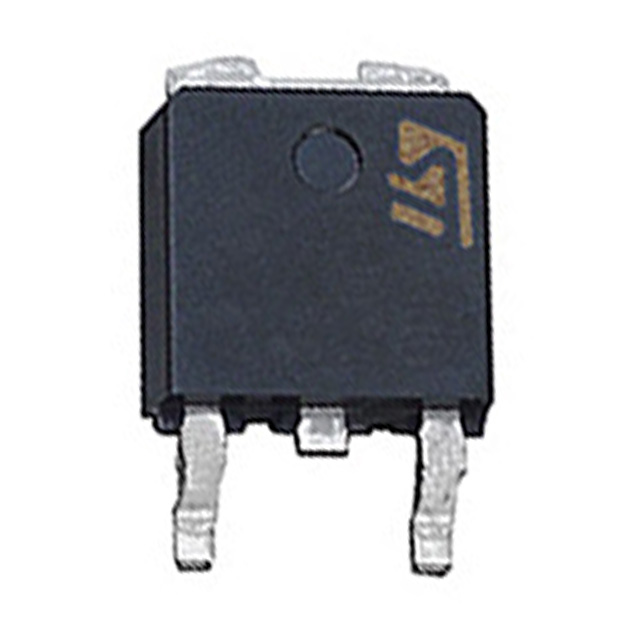

STD100N03LT4

STD100N03LT4



Производитель:

STMicroelectronics (VA)
Описание:
 MOSFET N-CH 30V 80A DPAK
Категория:
 Discrete Semiconductor Products
Корпус:
 TO-252
Год:
 08+

Datasheet (Техническое описание) STD100N03LT4

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSTD100N03LT4
VendorSTMicroelectronics (VA)
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25° C80A
Rds On (Max) @ Id, Vgs5.5 mOhm @ 40A, 10V
Input Capacitance (Ciss) @ Vds 2060pF @ 25V
Power - Max110W
PackagingCut Tape (CT)
Gate Charge (Qg) @ Vgs27nC @ 5V
Package / CaseDPak, SC-63, TO-252 (2 leads+tab)
FET FeatureStandard
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names STD100N03LT4
STD100N03LT4
497 4749 1 ND
49747491ND
497-4749-1
