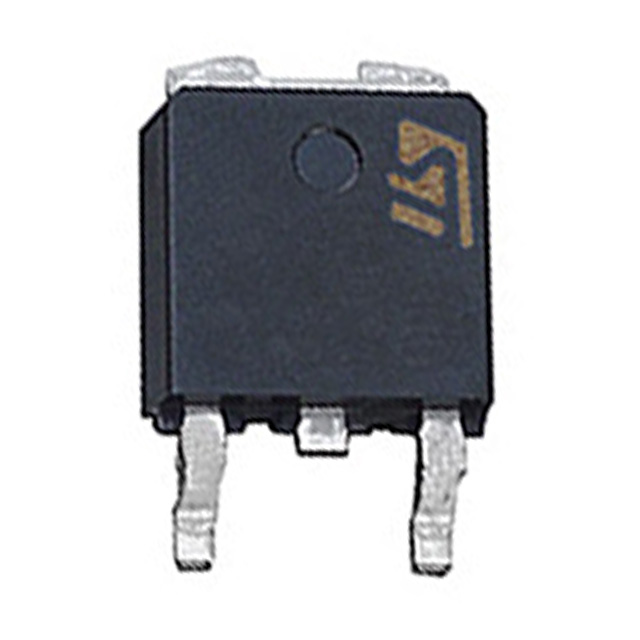

STD70N03L

STD70N03L



Производитель:

STMicroelectronics (VA)
Описание:
 MOSFET N-CH 30V 70A DPAK
Категория:
 Discrete Semiconductor Products
Корпус:
 TO-252
Год:
 07+

Datasheet (Техническое описание) STD70N03L

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSTD70N03L
VendorSTMicroelectronics (VA)
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25° C70A
Rds On (Max) @ Id, Vgs7.3 mOhm @ 35A, 10V
Input Capacitance (Ciss) @ Vds 2200pF @ 25V
Power - Max70W
PackagingCut Tape (CT)
Gate Charge (Qg) @ Vgs21nC @ 5V
Package / CaseDPak, SC-63, TO-252 (2 leads+tab)
FET FeatureLogic Level Gate
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names STD70N03L
STD70N03L
497 6188 1 ND
49761881ND
497-6188-1
