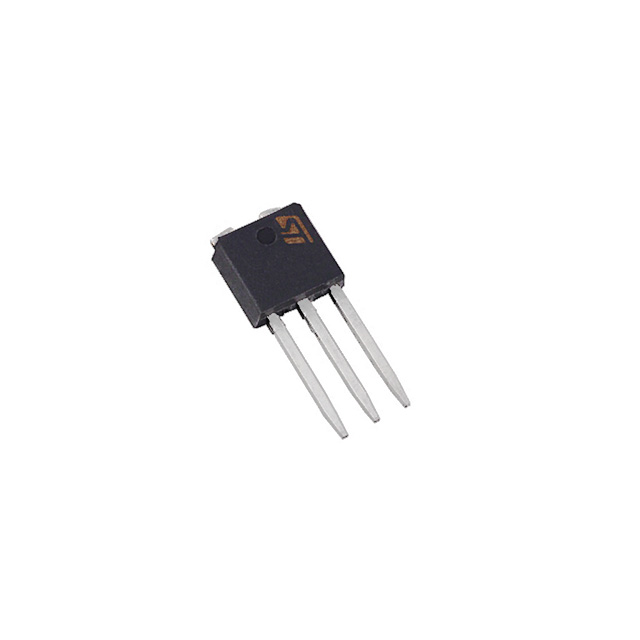

STD70N03L-1

STD70N03L-1



Производитель:

STMicroelectronics
Описание:
 MOSFET N-CH 30V 70A IPAK
Категория:
 Discrete Semiconductor Products
Корпус:
 7850
Год:
 ST

Datasheet (Техническое описание) STD70N03L-1

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSTD70N03L-1
VendorSTMicroelectronics
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityN-Channel
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25° C70A
Rds On (Max) @ Id, Vgs7.3 mOhm @ 35A, 10V
Input Capacitance (Ciss) @ Vds 2200pF @ 25V
Power - Max70W
PackagingTube
Gate Charge (Qg) @ Vgs21nC @ 5V
Package / CaseIPak, TO-251, DPak, VPak (3 straight leads + tab)
FET FeatureLogic Level Gate
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names STD70N03L 1
STD70N03L1
