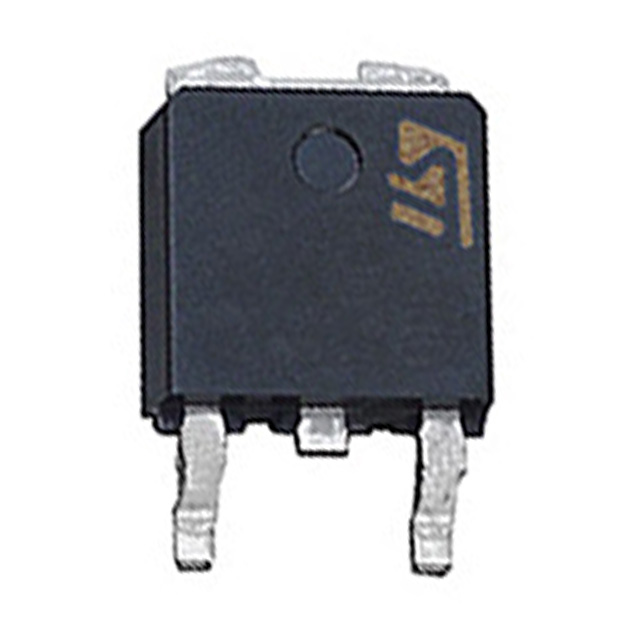

STD150NH02LT4

STD150NH02LT4



Производитель:

STMicroelectronics (VA)
Описание:
 MOSFET N-CH 24V 150A DPAK
Категория:
 Discrete Semiconductor Products
Корпус:
 TO-252
Год:
 06+

Datasheet (Техническое описание) STD150NH02LT4

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSTD150NH02LT4
VendorSTMicroelectronics (VA)
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)24V
Current - Continuous Drain (Id) @ 25° C150A
Rds On (Max) @ Id, Vgs3.5 mOhm @ 75A, 10V
Input Capacitance (Ciss) @ Vds 4450pF @ 15V
Power - Max125W
PackagingDigi-Reel?
Gate Charge (Qg) @ Vgs93nC @ 10V
Package / CaseDPak, SC-63, TO-252 (2 leads+tab)
FET FeatureLogic Level Gate
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names STD150NH02LT4
STD150NH02LT4
497 4750 6 ND
49747506ND
497-4750-6
