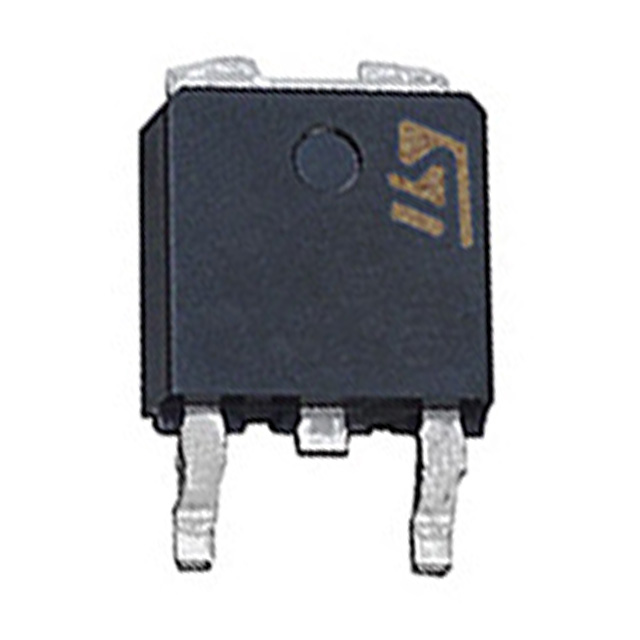

STD1NK80ZT4

STD1NK80ZT4



Производитель:

STMicroelectronics (VA)
Описание:
 MOSFET N-CH 800V 1A DPAK
Категория:
 Discrete Semiconductor Products
Корпус:
 7850
Год:
 ST

Datasheet (Техническое описание) STD1NK80ZT4

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSTD1NK80ZT4
VendorSTMicroelectronics (VA)
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)800V
Current - Continuous Drain (Id) @ 25° C1A
Rds On (Max) @ Id, Vgs16 Ohm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds 160pF @ 25V
Power - Max45W
PackagingDigi-Reel?
Gate Charge (Qg) @ Vgs7.7nC @ 10V
Package / CaseDPak, SC-63, TO-252 (2 leads+tab)
FET FeatureStandard
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names STD1NK80ZT4
STD1NK80ZT4
497 4751 6 ND
49747516ND
497-4751-6
