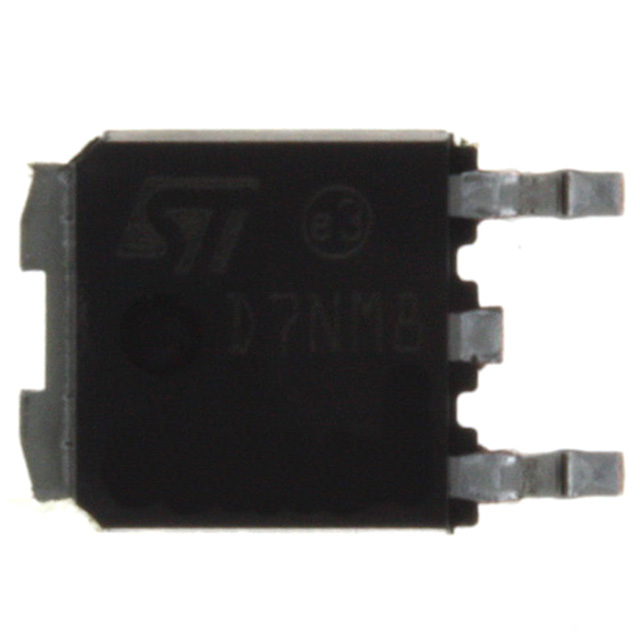

STD7NM80

STD7NM80



Производитель:

STMicroelectronics (VA)
Описание:
 MOSFET N-CH 800V 6.5A DPAK
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) STD7NM80

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSTD7NM80
VendorSTMicroelectronics (VA)
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)800V
Current - Continuous Drain (Id) @ 25° C6.5A
Rds On (Max) @ Id, Vgs1.05 Ohm @ 3.25A, 10V
Input Capacitance (Ciss) @ Vds 620pF @ 25V
Power - Max90W
PackagingDigi-Reel?
Gate Charge (Qg) @ Vgs18nC @ 10V
Package / CaseDPak, SC-63, TO-252 (2 leads+tab)
FET FeatureStandard
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names STD7NM80
STD7NM80
497 8807 6 ND
49788076ND
497-8807-6
