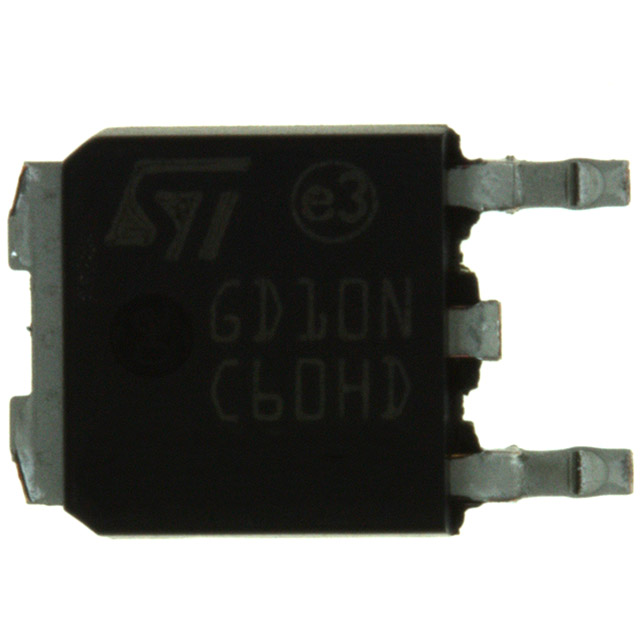

STGD10NC60HDT4

STGD10NC60HDT4



Производитель:

STMicroelectronics (VA)
Описание:
 IGBT UFAST 20A 600V D2PAK
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) STGD10NC60HDT4

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSTGD10NC60HDT4
VendorSTMicroelectronics (VA)
CategoryDiscrete Semiconductor Products
Input TypeStandard
Voltage - Collector Emitter Breakdown (Max)600V
Current - Collector (Ic) (Max)20A
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 5A
Power - Max62W
Mounting TypeSurface Mount
Package / CaseDPak, SC-63, TO-252 (2 leads+tab)
PackagingDigi-Reel?
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names STGD10NC60HDT4
STGD10NC60HDT4
497 8780 6 ND
49787806ND
497-8780-6
