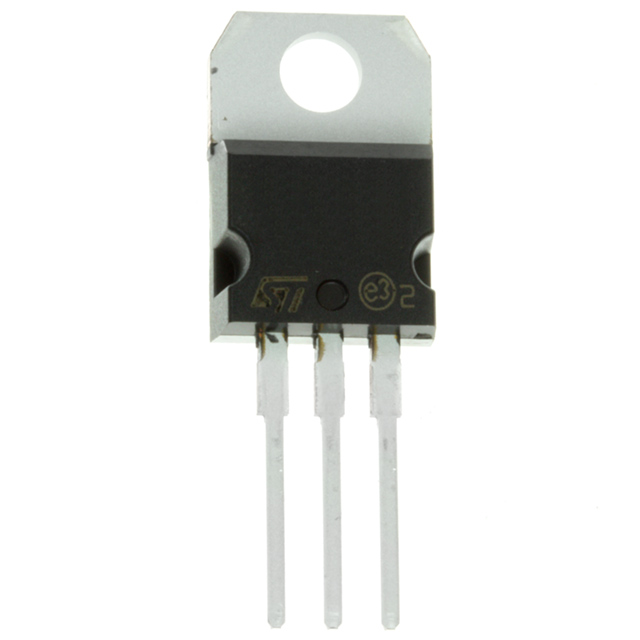

STP8NK100Z

STP8NK100Z



Производитель:

STMicroelectronics
Описание:
 MOSFET N-CH 1000V 6.5A TO-220
Категория:
 Discrete Semiconductor Products
Корпус:
 TO-220
Год:
 06+

Datasheet (Техническое описание) STP8NK100Z

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSTP8NK100Z
VendorSTMicroelectronics
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityN-Channel
Drain to Source Voltage (Vdss)1000V (1kV)
Current - Continuous Drain (Id) @ 25° C6.5A
Rds On (Max) @ Id, Vgs1.85 Ohm @ 3.15A, 10V
Input Capacitance (Ciss) @ Vds 2180pF @ 25V
Power - Max160W
PackagingTube
Gate Charge (Qg) @ Vgs102nC @ 10V
Package / CaseTO-220-3 (Straight Leads)
FET FeatureStandard
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names STP8NK100Z
STP8NK100Z
497 5021 5 ND
49750215ND
497-5021-5
