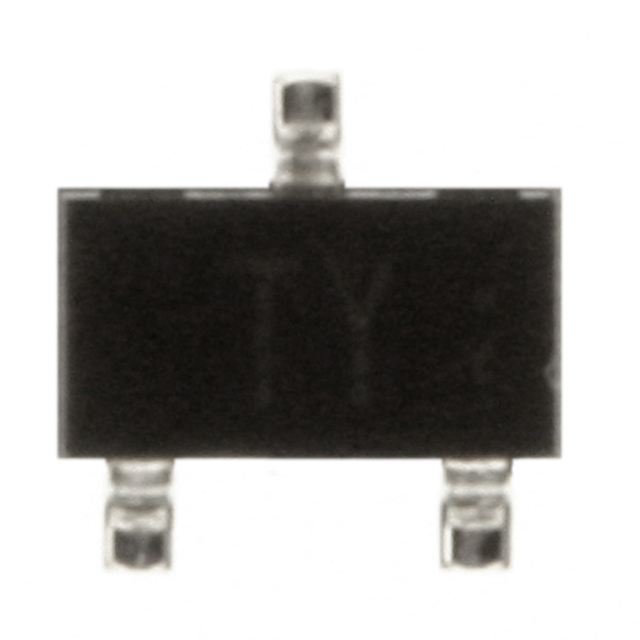

RTR025P02TL

Производитель:

Rohm Semiconductor

Купить

форма запроса

Описание:

MOSFET P-CH 20V 2.5A TSMT3

Категория:

Discrete Semiconductor Products

Корпус:

SOT23

Год:

2006

Technical/Catalog Information	RTR025P02TL
Vendor	Rohm Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	2.5A
Rds On (Max) @ Id, Vgs	95 mOhm @ 2.5A ,4.5V
Input Capacitance (Ciss) @ Vds	630pF @ 10V
Power - Max	1W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	7nC @ 4.5V
Package / Case	TSMT3
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RTR025P02TL RTR025P02TL RTR025P02TLTR ND RTR025P02TLTRND RTR025P02TLTR
