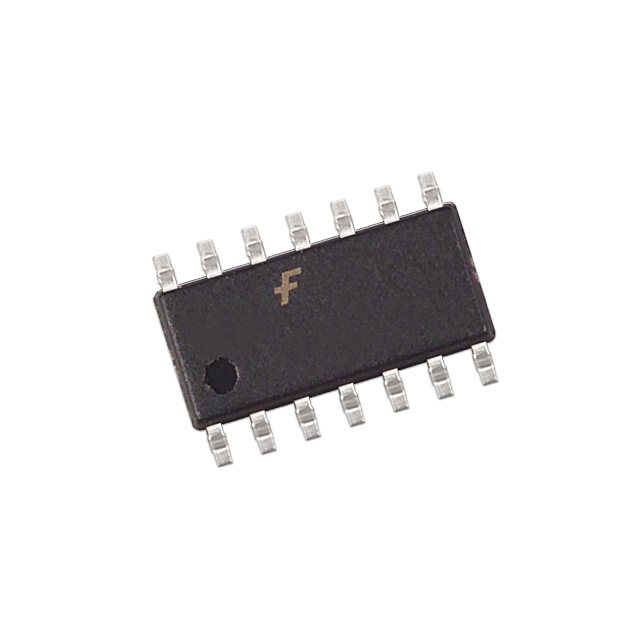

MM74HC00SJX

MM74HC00SJX



Производитель:

Fairchild Semiconductor
Описание:
 IC GATE NAND QUAD 2-INP 14-SOP
Категория:
 Integrated Circuits (ICs)
Корпус:
 SOP
Год:
 2004

Datasheet (Техническое описание) MM74HC00SJX

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationMM74HC00SJX
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
Number of Circuits4 - Quad
Package / Case14-SOIC (5.3mm Width), 14-SOP, 14-SOIJ
Logic TypeNAND Gate
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Inputs2
Current - Output High, Low5.2mA, 5.2mA
Supply Voltage2 V ~ 6 V
Operating Temperature-40°C ~ 85°C
Voltage - Supply2 V ~ 6 V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MM74HC00SJX
MM74HC00SJX
