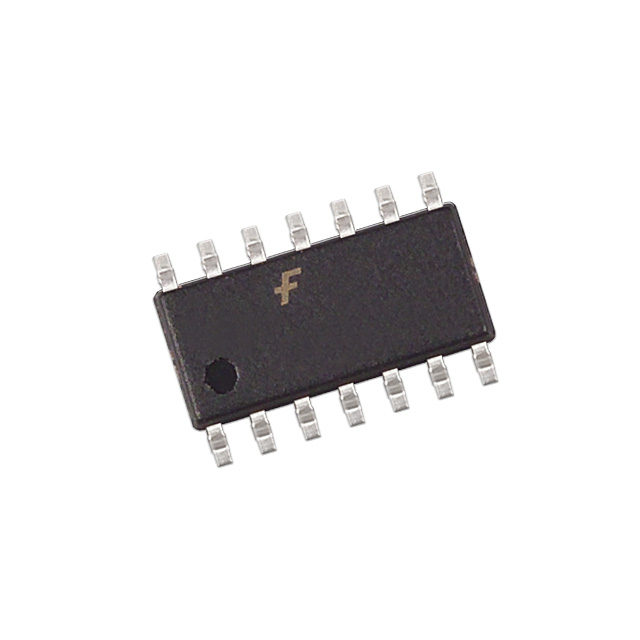

MM74HCT00SJX

MM74HCT00SJX



Производитель:

Fairchild Semiconductor
Описание:
 IC GATE NAND QUAD 2-INP 14-SOP
Категория:
 Integrated Circuits (ICs)
Корпус:
 SOP5.2
Год:
 08+

Datasheet (Техническое описание) MM74HCT00SJX

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationMM74HCT00SJX
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
Number of Circuits4 - Quad
Package / Case14-SOIC (5.3mm Width), 14-SOP, 14-SOIJ
Logic TypeNAND Gate
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Inputs2
Current - Output High, Low4.8mA, 4.8mA
Supply Voltage4.5 V ~ 5.5 V
Operating Temperature-40°C ~ 85°C
Voltage - Supply4.5 V ~ 5.5 V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MM74HCT00SJX
MM74HCT00SJX
