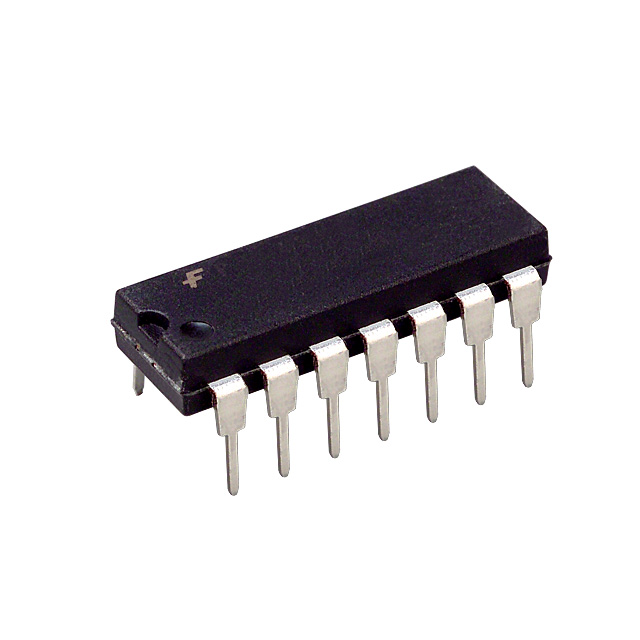

MM74HCT05N

MM74HCT05N



Производитель:

Fairchild Semiconductor
Описание:
 IC HEX INVERTER OPEN DRN 14-DIP
Категория:
 Integrated Circuits (ICs)
Корпус:
 DIP-14
Год:
 6+

Datasheet (Техническое описание) MM74HCT05N

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationMM74HCT05N
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
Number of Circuits6 - Hex
Package / Case14-DIP
Logic TypeInverter
PackagingTube
Mounting TypeThrough Hole
Number of Inputs1
Current - Output High, Low4.8mA, 4.8mA
Supply Voltage4.5 V ~ 5.5 V
Operating Temperature-40°C ~ 85°C
Voltage - Supply4.5 V ~ 5.5 V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MM74HCT05N
MM74HCT05N
