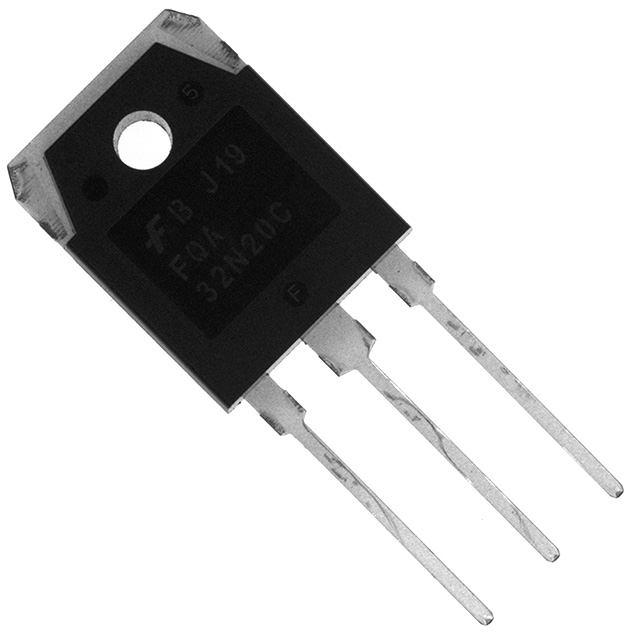

FQA32N20C

FQA32N20C



Производитель:

Fairchild Semiconductor
Описание:
 MOSFET N-CH 200V 32A TO-3P
Категория:
 Discrete Semiconductor Products
Корпус:
 TO-3P
Год:
 06+

Datasheet (Техническое описание) FQA32N20C

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationFQA32N20C
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityN-Channel
Drain to Source Voltage (Vdss)200V
Current - Continuous Drain (Id) @ 25° C32A
Rds On (Max) @ Id, Vgs82 mOhm @ 16A, 10V
Input Capacitance (Ciss) @ Vds 2220pF @ 25V
Power - Max204W
PackagingTube
Gate Charge (Qg) @ Vgs110nC @ 10V
Package / CaseTO-3P
FET FeatureStandard
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names FQA32N20C
FQA32N20C
