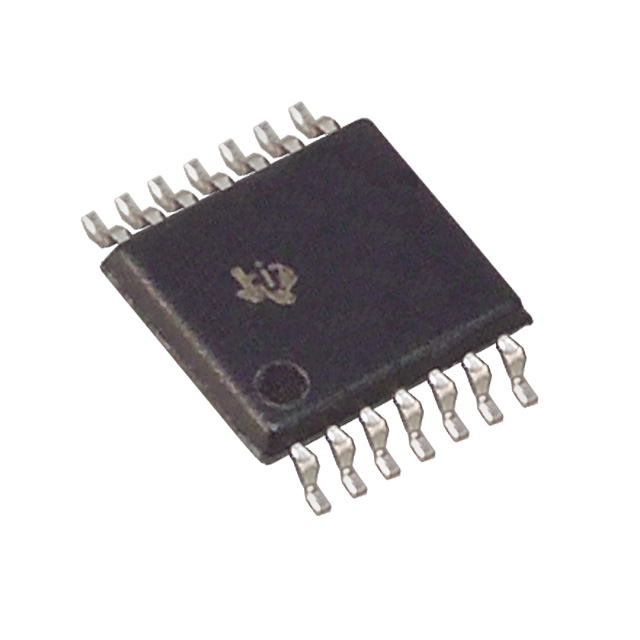

CD4093BPW

CD4093BPW



Производитель:

Texas Instruments
Описание:
 IC 2IN NAND SCHMTT TRIGG 14TSSOP
Категория:
 Integrated Circuits (ICs)
Корпус:
 SOP
Год:
 05+

Datasheet (Техническое описание) CD4093BPW

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationCD4093BPW
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Number of Circuits4 - Quad
Package / Case14-TSSOP
Logic TypeNAND Gate - Schmitt Trigger
PackagingTube
Mounting TypeSurface Mount
Number of Inputs2
Current - Output High, Low6.8mA, 6.8mA
Supply Voltage3 V ~ 18 V
Operating Temperature-55°C ~ 125°C
Voltage - Supply3 V ~ 18 V
Drawing Number296; 4040064; PW; 8, 14, 16, 20, 24, 28
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names CD4093BPW
CD4093BPW
296 14146 5 ND
296141465ND
296-14146-5
