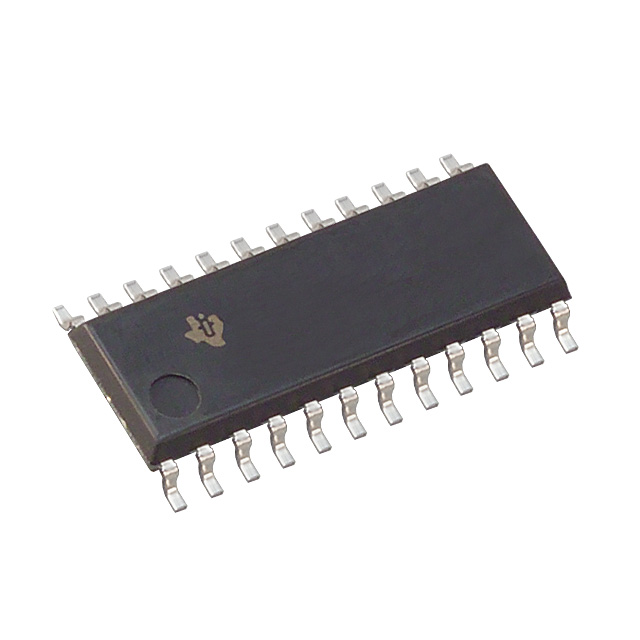

CD4508BNSR

CD4508BNSR



Производитель:

Texas Instruments
Описание:
 IC DUAL 4BIT LATCH 20V 24-SOP
Категория:
 Integrated Circuits (ICs)
Корпус:
 SOP24
Год:
 0701+

Datasheet (Техническое описание) CD4508BNSR

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationCD4508BNSR
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Logic TypeD-Type Transparent Latch
Independent Circuits2
Circuit8:8
Output TypeStandard
Current - Output High, Low6.8mA, 6.8mA
Mounting TypeSurface Mount
Package / Case24-SOIC (5.3mm Width), 24-SOP, 24-SOEIAJ
PackagingTape & Reel (TR)
Operating Temperature-55°C ~ 125°C
Delay Time - Propagation50ns
Voltage - Supply3 V ~ 18 V
Drawing Number296; 4040062; NS; 14, 16, 20, 24
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names CD4508BNSR
CD4508BNSR
