BL-21994

BL-21994



Производитель:

Knowles Acoustics
Описание:

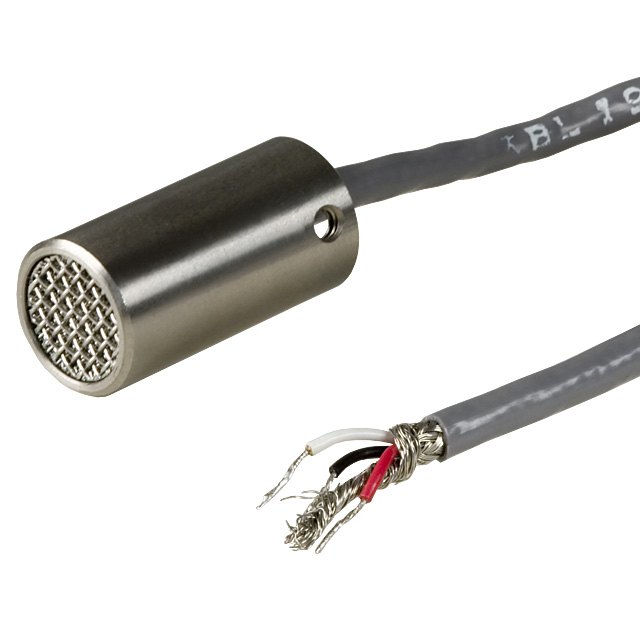

 MIC ASSY PIEZO INSTR W/38" CABLE
Категория:
 Audio Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) BL-21994

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationBL-21994
VendorKnowles Acoustics
CategoryAudio Products
Sensitivity-69dB ±3dB
Voltage - Rated 3V
Current 160??A
TypePiezo Condenser
Size / DimensionCircular - 12.7mm Dia x 25.4mm H
Frequency20Hz ~ 10kHz
S/N Ratio-
Filter Type-
Impedance4K Ohm
TerminationWire Leads
DirectionOmnidirectional
Port LocationTop
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names BL 21994
BL21994
423 1002 ND
4231002ND
423-1002
