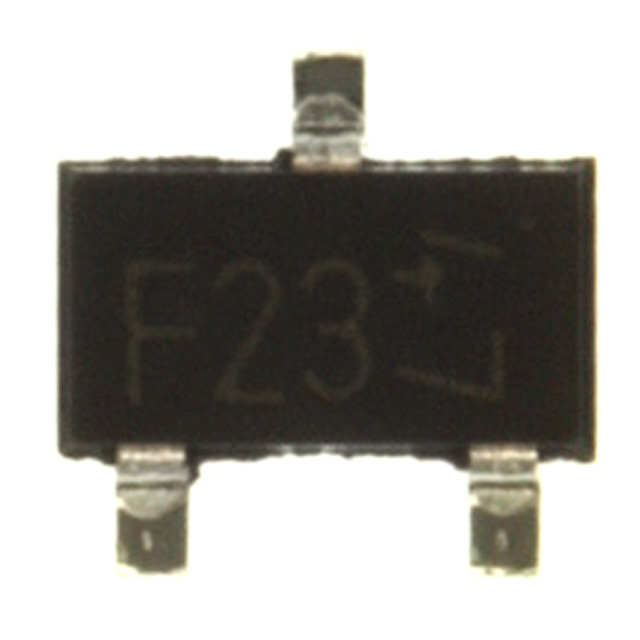

| Technical/Catalog Information | DTD143EKT146 |
| Vendor | Rohm Semiconductor(VA) |
| Category | Discrete Semiconductor Products |
| Transistor Type | NPN - Pre-Biased |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Current - Collector (Ic) (Max) | 500mA |
| Power - Max | 200mW |
| Resistor - Base (R1) (Ohms) | 4.7K |
| Resistor - Emitter Base (R2) (Ohms) | 4.7K |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 2.5mA, 50mA |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 47 @ 50mA, 5V |
| Frequency - Transition | 200MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-59-3, SMT3, SOT-346, TO-236 |
| Packaging | Digi-Reel? |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | DTD143EKT146
DTD143EKT146
DTD143EKT146DKR ND
DTD143EKT146DKRND
DTD143EKT146DKR
|
