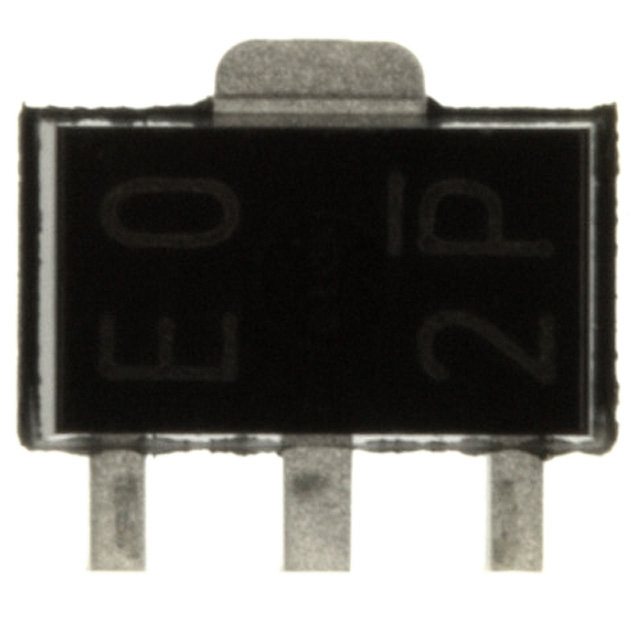

DTDG23YPT100

DTDG23YPT100



Производитель:

Rohm Semiconductor
Описание:
 TRANS NPN 60V 1A SOT-89
Категория:
 Discrete Semiconductor Products
Корпус:
 SOT89
Год:
 03+

Datasheet (Техническое описание) DTDG23YPT100

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationDTDG23YPT100
VendorRohm Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN - Pre-Biased
Voltage - Collector Emitter Breakdown (Max)60V
Current - Collector (Ic) (Max)1A
Power - Max1.5W
Resistor - Base (R1) (Ohms)2.2K
Resistor - Emitter Base (R2) (Ohms)22K
Vce Saturation (Max) @ Ib, Ic400mV @ 5mA, 500mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce300 @ 500mA, 2V
Frequency - Transition80MHz
Mounting TypeSurface Mount
Package / CaseSC-62, SOT-89, MPT3 (3 leads + Tab)
PackagingTape & Reel (TR)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DTDG23YPT100
DTDG23YPT100
DTDG23YPT100TR ND
DTDG23YPT100TRND
DTDG23YPT100TR
