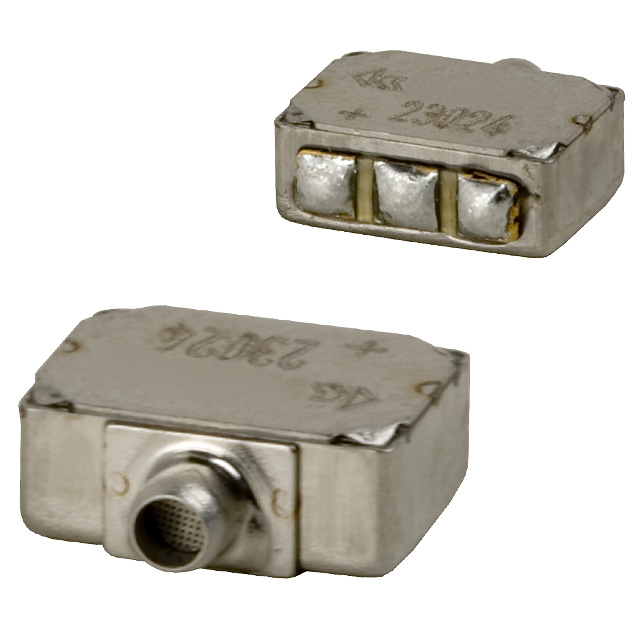

EK-23024-C36

EK-23024-C36



Производитель:

Knowles Acoustics
Описание:
 MIC OMNI .9-10VDC -33DB SENS
Категория:
 Audio Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) EK-23024-C36

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationEK-23024-C36
VendorKnowles Acoustics
CategoryAudio Products
Sensitivity-53dB ±2dB
Voltage - Rated 1.3V
Current 50??A
TypeElectret Condenser
Size / DimensionRectangular - 5.56mm L x 3.99mm W x 2.21mm H
Frequency100Hz ~ 5.5kHz
S/N Ratio-
Filter Type-
Impedance4.4K Ohm
TerminationSolder Pads
DirectionOmnidirectional
Port LocationSide
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names EK 23024 C36
EK23024C36
423 1121 ND
4231121ND
423-1121
