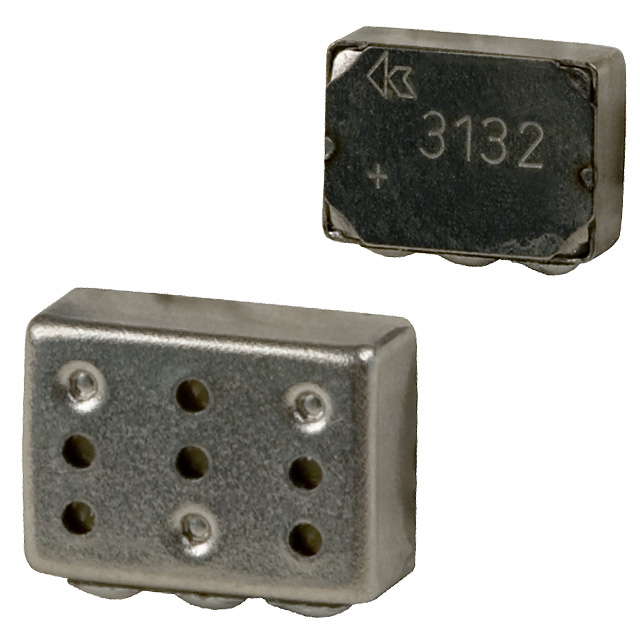

EK-23132

EK-23132



Производитель:

Knowles Acoustics
Описание:
 MIC ELECTRET OMNI FREQ RESPONSE
Категория:
 Audio Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) EK-23132

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationEK-23132
VendorKnowles Acoustics
CategoryAudio Products
Sensitivity-53dB ±2dB
Voltage - Rated 1.3V
Current 50??A
TypeElectret Condenser
Size / DimensionRectangular - 5.56mm L x 3.99mm W x 2.21mm H
Frequency100Hz ~ 10kHz
S/N Ratio-
Filter Type-
Impedance4.4K Ohm
TerminationSolder Pads
DirectionOmnidirectional
Port LocationTop
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names EK 23132
EK23132
423 1008 ND
4231008ND
423-1008
