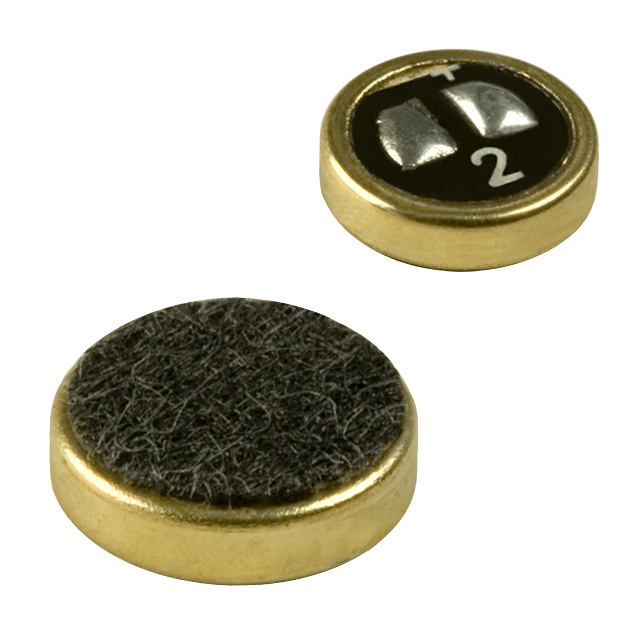

EM6015-44BC10&33

EM6015-44BC10&33



Производитель:

Horn Industrial Co LTD
Описание:
 MIC OMNI DIRECT 6.0X1.5MM -44DB
Категория:
 Audio Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) EM6015-44BC10&33

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationEM6015-44BC10&33
VendorHorn Industrial Co LTD
CategoryAudio Products
Sensitivity-44dB ±2dB
Voltage - Rated 2V
Current 500??A
TypeElectret Condenser
Size / DimensionCircular - 6mm Dia x 1.5mm H
Frequency100Hz ~ 10kHz
S/N Ratio60dB
Filter Type10pF and 33pF
Impedance2.2K Ohm
TerminationSolder Pads
DirectionOmnidirectional
Port LocationTop
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names EM6015 44BC10&33
EM601544BC10&33
359 1027 ND
3591027ND
359-1027
