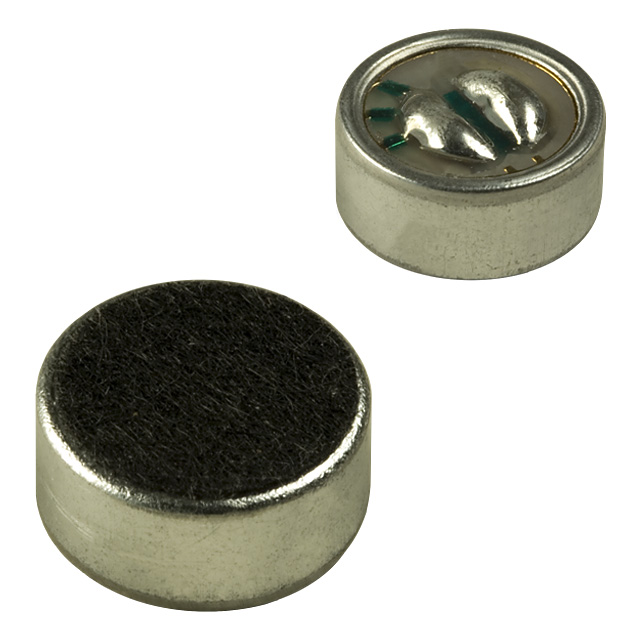

EM9745-442-G

EM9745-442-G



Производитель:

Horn Industrial Co LTD
Описание:
 MICROPHONE OMNI DIRECT 9.7X4.5MM
Категория:
 Audio Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) EM9745-442-G

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationEM9745-442-G
VendorHorn Industrial Co LTD
CategoryAudio Products
Sensitivity-44dB ±2dB
Voltage - Rated 4.5V
Current 500??A
TypeElectret Condenser
Size / DimensionCircular - 9.7mm Dia x 4.5mm H
Frequency100Hz ~ 10kHz
S/N Ratio60dB
Filter Type-
Impedance2.2K Ohm
TerminationSolder Pads
DirectionOmnidirectional
Port LocationTop
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names EM9745 442 G
EM9745442G
359 1047 ND
3591047ND
359-1047
