EM9752U-514-G

EM9752U-514-G



Производитель:

Horn Industrial Co LTD
Описание:

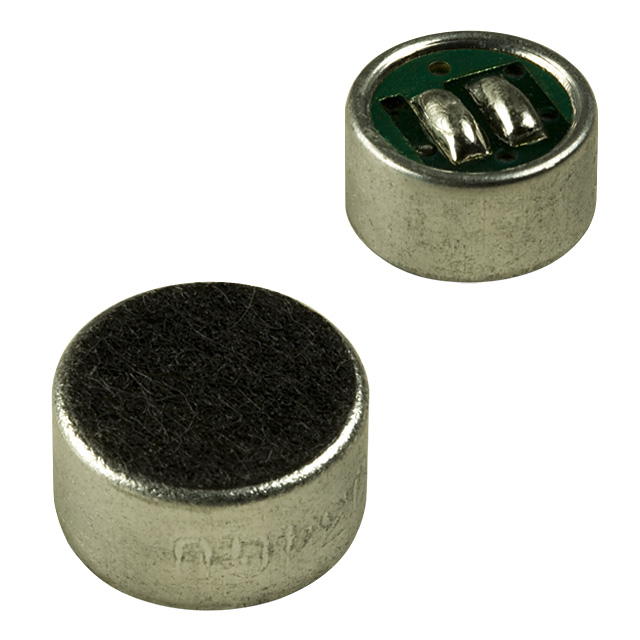

 MICROPHONE UNI DIRECT 9.7X5.2MM
Категория:
 Audio Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) EM9752U-514-G

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationEM9752U-514-G
VendorHorn Industrial Co LTD
CategoryAudio Products
Sensitivity-51dB ±4dB
Voltage - Rated 1.5V
Current 500??A
TypeElectret Condenser
Size / DimensionCircular - 9.7mm Dia x 5.2mm H
Frequency100Hz ~ 10kHz
S/N Ratio60dB
Filter Type-
Impedance680 Ohm
TerminationSolder Pads
DirectionUnidirectional
Port LocationTop
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names EM9752U 514 G
EM9752U514G
359 1045 ND
3591045ND
359-1045
