SP100A-1123XBT.GN

SP100A-1123XBT.GN



Производитель:

Sunon Fans
Описание:

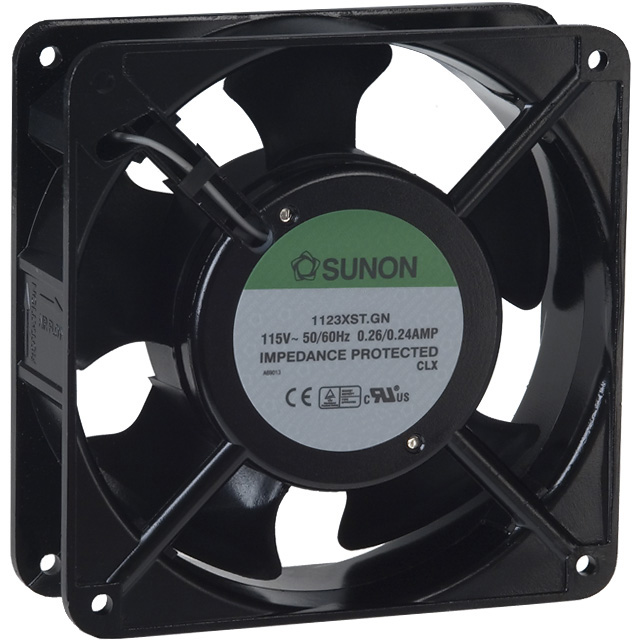

 FAN 115VAC 120 X 38MM 117CFM
Категория:
 Fans, Thermal Management
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) SP100A-1123XBT.GN

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSP100A-1123XBT.GN
VendorSunon Fans
CategoryFans, Thermal Management
Air Flow117.0 CFM (3.31m³/min)
Bearing TypeBall
Fan TypeTubeaxial
Noise50 dB(A)
Power (Watts)20W
Size / DimensionSquare - 120mm L x 120mm H x 38mm W
Static Pressure0.390 in H2O (97.1 Pa)
Termination2 Terminals
Voltage Rating115VAC
RPM3150 RPM
Weight1.2 lbs (544.31g)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SP100A 1123XBT GN
SP100A1123XBTGN
259 1385 ND
2591385ND
259-1385
