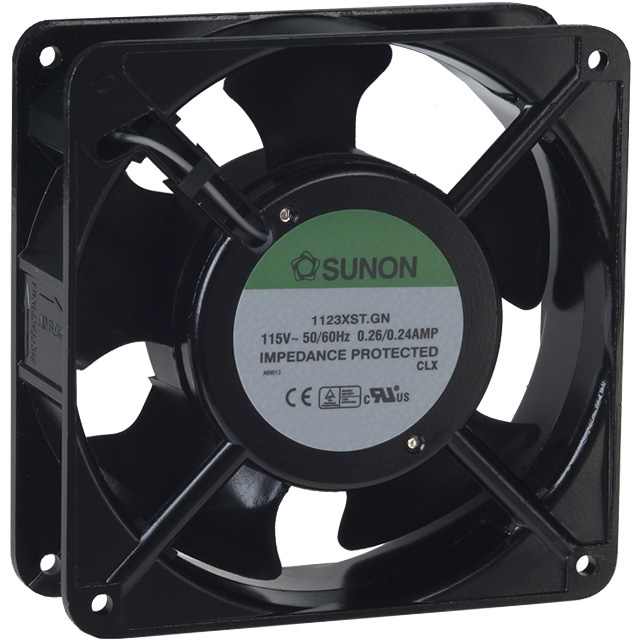

SP100A-1123XST.GN

SP100A-1123XST.GN



Производитель:

Sunon Fans
Описание:
 FAN 115VAC 120 X 38MM 115CFM
Категория:
 Fans, Thermal Management
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) SP100A-1123XST.GN

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSP100A-1123XST.GN
VendorSunon Fans
CategoryFans, Thermal Management
Air Flow115.0 CFM (3.25m³/min)
Bearing TypeSleeve
Fan TypeTubeaxial
Noise49 dB(A)
Power (Watts)20W
Size / DimensionSquare - 120mm L x 120mm H x 38mm W
Static Pressure0.380 in H2O (94.6 Pa)
Termination2 Terminals
Voltage Rating115VAC
RPM3100 RPM
Weight1.2 lbs (544.31g)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SP100A 1123XST GN
SP100A1123XSTGN
259 1386 ND
2591386ND
259-1386
