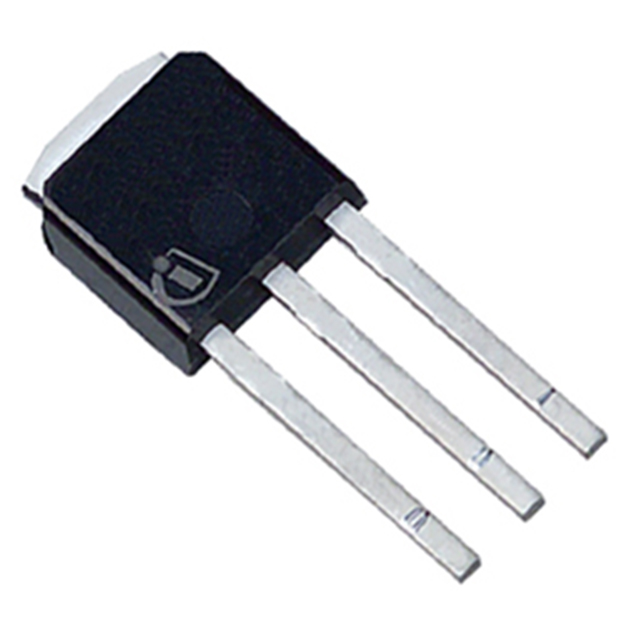

SPU09P06PL

SPU09P06PL



Производитель:

Infineon Technologies
Описание:
 MOSFET P-CH 60V 9.7A TO-251
Категория:
 Discrete Semiconductor Products
Корпус:
 7850
Год:
 INFINEON

Datasheet (Техническое описание) SPU09P06PL

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSPU09P06PL
VendorInfineon Technologies
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityP-Channel
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25° C9.7A
Rds On (Max) @ Id, Vgs250 mOhm @ 6.8A, 10V
Input Capacitance (Ciss) @ Vds 450pF @ 25V
Power - Max42W
PackagingTube
Gate Charge (Qg) @ Vgs21nC @ 10V
Package / CaseIPak, TO-251, DPak, VPak (3 straight leads + tab)
FET FeatureLogic Level Gate
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SPU09P06PL
SPU09P06PL
SPU09P06PLIN ND
SPU09P06PLINND
SPU09P06PLIN
