SPU30P06P

SPU30P06P



Производитель:

Infineon Technologies
Описание:

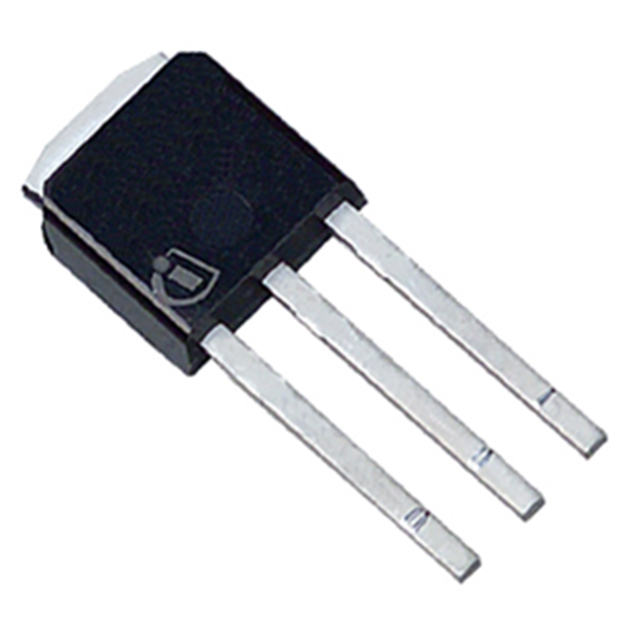

 MOSFET P-CHAN 60V 30A TO251
Категория:
 Discrete Semiconductor Products
Корпус:
 7850
Год:
 INFINEON

Datasheet (Техническое описание) SPU30P06P

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSPU30P06P
VendorInfineon Technologies
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityP-Channel
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25° C30A
Rds On (Max) @ Id, Vgs75 mOhm @ 21.5A, 10V
Input Capacitance (Ciss) @ Vds 1535pF @ 25V
Power - Max125W
PackagingTube
Gate Charge (Qg) @ Vgs48nC @ 10V
Package / CaseIPak, TO-251, DPak, VPak (3 straight leads + tab)
FET FeatureStandard
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SPU30P06P
SPU30P06P
SPU30P06PIN ND
SPU30P06PINND
SPU30P06PIN
