PKM17EWH4000

PKM17EWH4000



Производитель:

Murata Electronics North America
Описание:

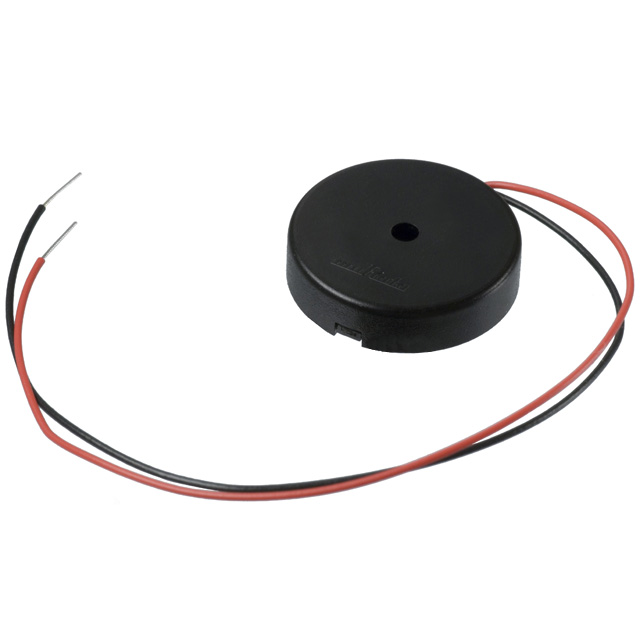

 BUZZER PIEZO 25VP-P 4KHZ WIRE
Категория:
 Audio Products
Корпус:
 --
Год:
 08+

Datasheet (Техническое описание) PKM17EWH4000

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationPKM17EWH4000
VendorMurata Electronics North America
CategoryAudio Products
TypePiezo Transducer, External Drive
Sound Pressure Level75dB
Mounting TypeRequires Holder
Capacitance @ Frequency9500pF @ 1kHz
Frequency4kHz
PackagingBulk
Operating Mode-
Voltage Range25Vp-p (max)
Voltage - Rated 3Vp-p
Current Rating-
Size / DimensionCircular - 16.8mm Dia x 4mm H
TerminationWire Leads
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PKM17EWH4000
PKM17EWH4000
490 4696 ND
4904696ND
490-4696
