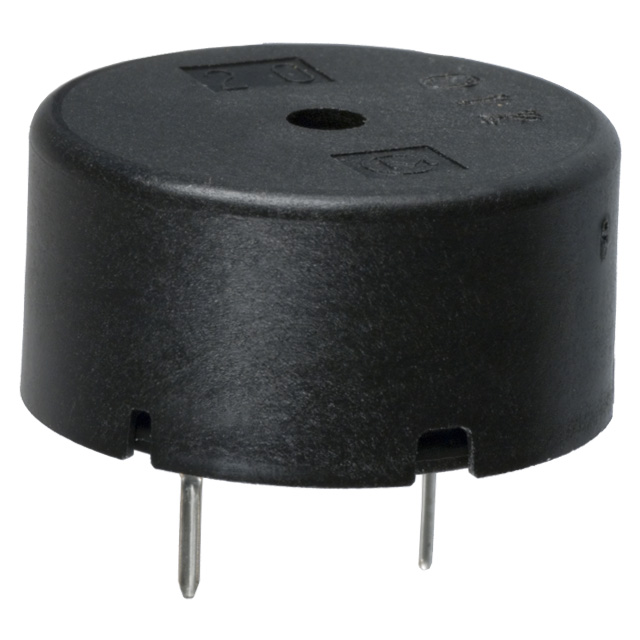

PKM22EPPH2001-B0

PKM22EPPH2001-B0



Производитель:

Murata Electronics North America
Описание:
 BUZZER PIEZO 25VP-P 2KHZ PC MT
Категория:
 Audio Products
Корпус:
 --
Год:
 08+

Datasheet (Техническое описание) PKM22EPPH2001-B0

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationPKM22EPPH2001-B0
VendorMurata Electronics North America
CategoryAudio Products
TypePiezo Transducer, External Drive
Sound Pressure Level70dB
Mounting TypeThrough Hole
Capacitance @ Frequency19000pF @ 120Hz
Frequency2kHz
PackagingBulk
Operating Mode-
Voltage Range25Vp-p (max)
Voltage - Rated 3Vp-p
Current Rating-
Size / DimensionCircular - 22mm Dia x 10.8mm H
TerminationSolder Pins/Posts
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PKM22EPPH2001 B0
PKM22EPPH2001B0
490 4691 ND
4904691ND
490-4691
