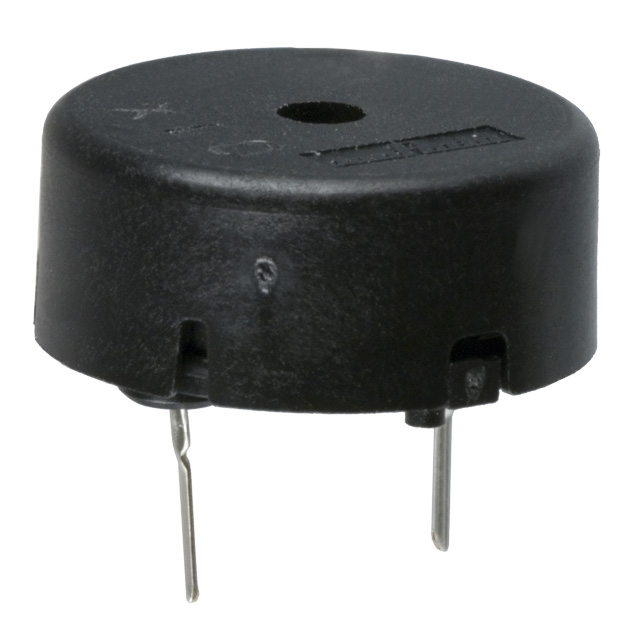

PKM17EPPH4001-B0

PKM17EPPH4001-B0



Производитель:

Murata Electronics North America
Описание:
 BUZZER PIEZO 25VP-P 4KHZ PC MT
Категория:
 Audio Products
Корпус:
 MURATA
Год:
 06+

Datasheet (Техническое описание) PKM17EPPH4001-B0

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationPKM17EPPH4001-B0
VendorMurata Electronics North America
CategoryAudio Products
TypePiezo Transducer, External Drive
Sound Pressure Level72dB
Mounting TypeThrough Hole
Capacitance @ Frequency7000pF @ 1kHz
Frequency4kHz
PackagingBulk
Operating Mode-
Voltage Range25Vp-p (max)
Voltage - Rated 3Vp-p
Current Rating-
Size / DimensionCircular - 17mm Dia x 7mm H
TerminationSolder Pins/Posts
Capacitance*
Adjustment Type*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PKM17EPPH4001 B0
PKM17EPPH4001B0
490 4694 ND
4904694ND
490-4694
