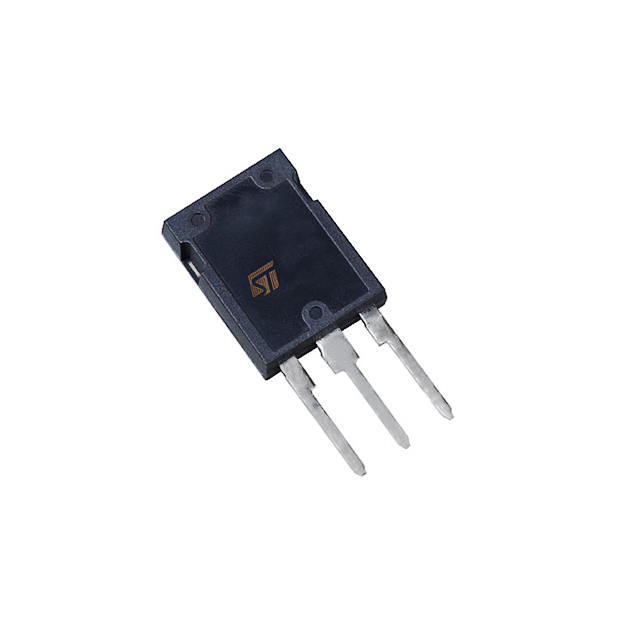

STY100NS20FD

Производитель:

STMicroelectronics

Купить

форма запроса

Описание:

MOSFET N-CH 200V 100A MAX247

Категория:

Discrete Semiconductor Products

Корпус:

TO-247

Год:

05+

Technical/Catalog Information	STY100NS20FD
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	200V
Current - Continuous Drain (Id) @ 25° C	100A
Rds On (Max) @ Id, Vgs	24 mOhm @ 50A, 10V
Input Capacitance (Ciss) @ Vds	7900pF @ 25V
Power - Max	450W
Packaging	Tube
Gate Charge (Qg) @ Vgs	360nC @ 10V
Package / Case	MAX247?
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	STY100NS20FD STY100NS20FD 497 5321 5 ND 49753215ND 497-5321-5

Похожие микросхемы:

STY80NM60N
MOSFET N-CH 600V 74A MAX247

STY60NM60
MOSFET N-CH 600V 60A MAX247

STY60NM50
MOSFET N-CH 500V 60A MAX247

STY60NK30Z
MOSFET N-CH 300V 60A MAX247

STY34NB50
MOSFET N-CH 500V 34A MAX247

STY30NK90Z
MOSFET N-CH 900V 26A MAX247

STY140NS10
MOSFET N-CH 100V 140A MAX247
