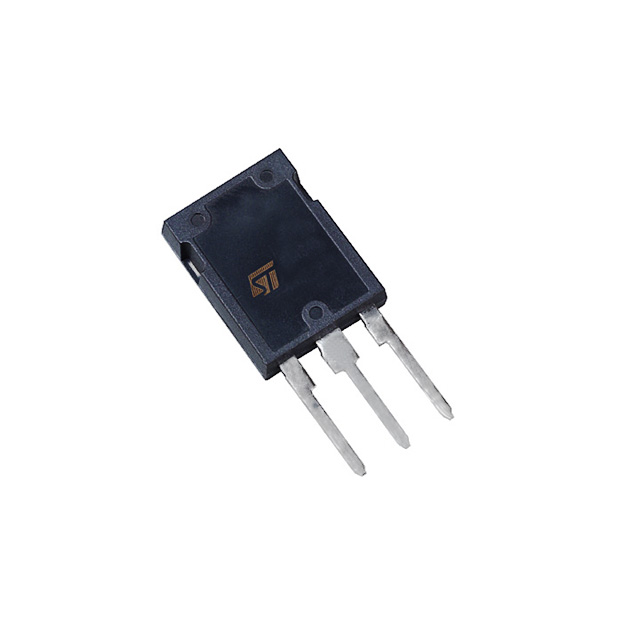

STY60NK30Z

Производитель:

STMicroelectronics

Купить

форма запроса

Описание:

MOSFET N-CH 300V 60A MAX247

Категория:

Discrete Semiconductor Products

Корпус:

Max247

Год:

06+

Technical/Catalog Information	STY60NK30Z
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	300V
Current - Continuous Drain (Id) @ 25Â° C	60A
Rds On (Max) @ Id, Vgs	45 mOhm @ 30A, 10V
Input Capacitance (Ciss) @ Vds	7200pF @ 25V
Power - Max	450W
Packaging	Tube
Gate Charge (Qg) @ Vgs	220nC @ 10V
Package / Case	MAX247?
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	STY60NK30Z STY60NK30Z 497 4432 5 ND 49744325ND 497-4432-5
