STY140NS10

Производитель:

STMicroelectronics

Купить

форма запроса

Описание:

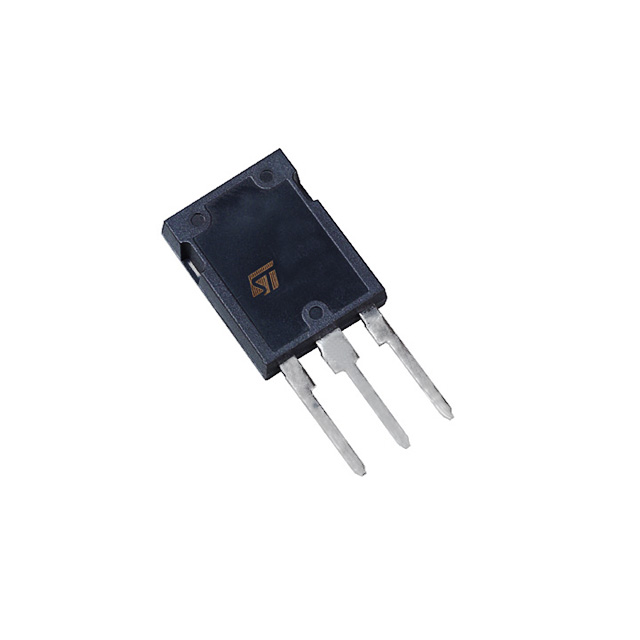

MOSFET N-CH 100V 140A MAX247

Категория:

Discrete Semiconductor Products

Корпус:

7850

Год:

Technical/Catalog Information	STY140NS10
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25° C	140A
Rds On (Max) @ Id, Vgs	11 mOhm @ 70A, 10V
Input Capacitance (Ciss) @ Vds	12600pF @ 25V
Power - Max	450W
Packaging	Tube
Gate Charge (Qg) @ Vgs	600nC @ 10V
Package / Case	MAX247?
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	STY140NS10 STY140NS10 497 3267 5 ND 49732675ND 497-3267-5
