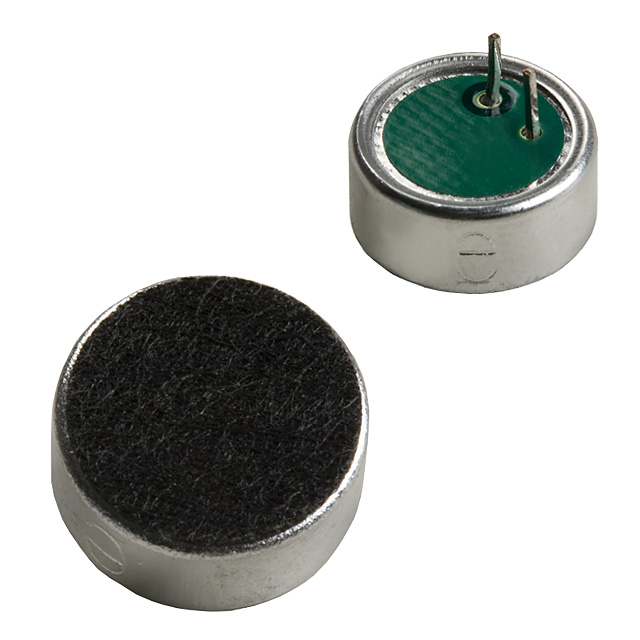

MD9745APA-1

Производитель:

Knowles Acoustics

Купить

форма запроса

Описание:

MIC CONDENSER ELECT-41+-3DB PINS

Категория:

Audio Products

Корпус:

Год:

Technical/Catalog Information	MD9745APA-1
Vendor	Knowles Acoustics
Category	Audio Products
Sensitivity	-41dB ±3dB
Voltage - Rated	2V
Current	500??A
Type	Electret Condenser
Size / Dimension	Circular - 9.7mm Dia x 4.5mm H
Frequency	100Hz ~ 10kHz
S/N Ratio	55dB
Filter Type	10pF
Impedance	2.2K Ohm
Termination	Solder Pins/Posts
Direction	Omnidirectional
Port Location	Top
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MD9745APA 1 MD9745APA1 423 1024 ND 4231024ND 423-1024
