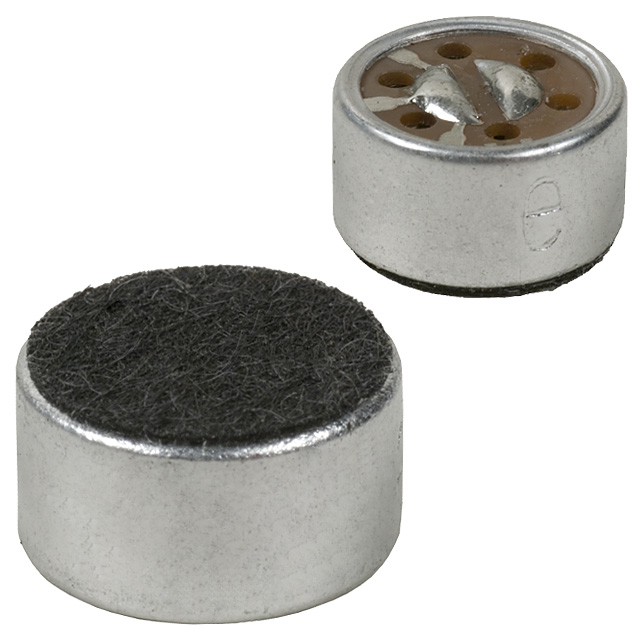

MD9752NSZ-1

Производитель:

Knowles Acoustics

Купить

форма запроса

Описание:

MIC CONDENSER ELEC -40+-3DB SLDR

Категория:

Audio Products

Корпус:

Год:

Technical/Catalog Information	MD9752NSZ-1
Vendor	Knowles Acoustics
Category	Audio Products
Sensitivity	-40dB ±3dB
Voltage - Rated	3V
Current	500??A
Type	Electret Condenser
Size / Dimension	Circular - 9.7mm Dia x 5.2mm H
Frequency	100Hz ~ 10kHz
S/N Ratio	55dB
Filter Type	-
Impedance	2.2K Ohm
Termination	Solder Pads
Direction	Noise Cancelling
Port Location	Top
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MD9752NSZ 1 MD9752NSZ1 423 1079 ND 4231079ND 423-1079
