MD9745APZ-F

Производитель:

Knowles Acoustics

Купить

форма запроса

Описание:

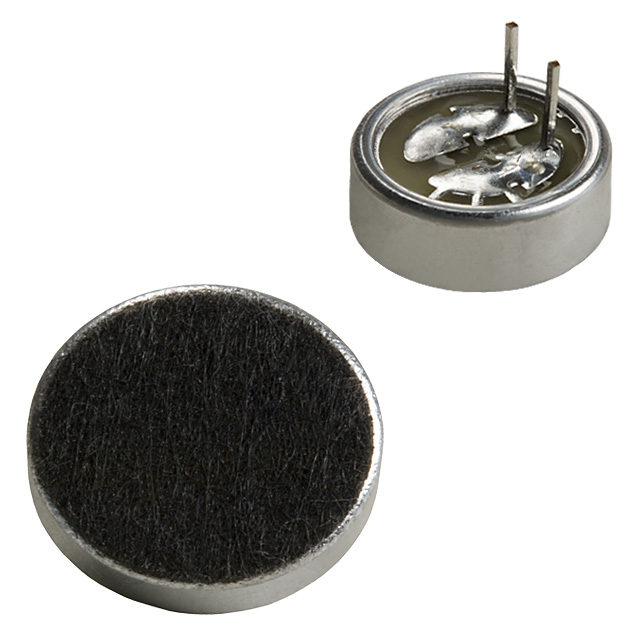

MIC CONDENSER ELECT-44+-2DB PINS

Категория:

Audio Products

Корпус:

Год:

Technical/Catalog Information	MD9745APZ-F
Vendor	Knowles Acoustics
Category	Audio Products
Sensitivity	-44dB ±2dB
Voltage - Rated	2V
Current	500??A
Type	Electret Condenser
Size / Dimension	Circular - 9.7mm Dia x 4.5mm H
Frequency	100Hz ~ 10kHz
S/N Ratio	55dB
Filter Type	-
Impedance	2.2K Ohm
Termination	Solder Pins/Posts
Direction	Omnidirectional
Port Location	Top
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MD9745APZ F MD9745APZF 423 1023 ND 4231023ND 423-1023
